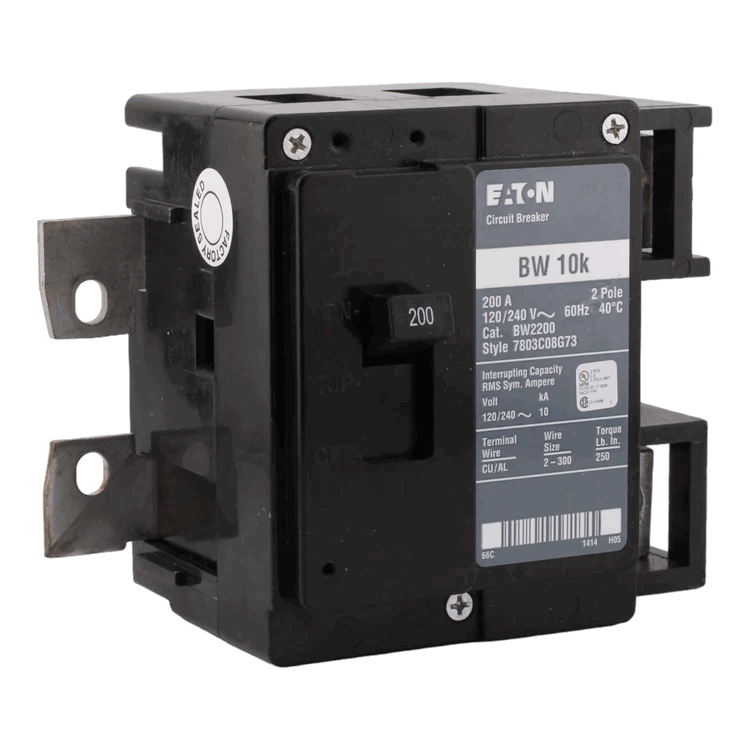

Eaton BW2200 200 Amp Double Pole Main Bolt-On Circuit Breaker - 120/240V, UL Listed

Product Description

UPC: not available

Eaton BW2200 200 Amp Double Pole Main Bolt-On Circuit Breaker - 120/240V, UL Listed

Replaces main breaker on 200 A type BR load centers. Includes main breaker, mounting screws, two bus torque nuts and instructions. For field installed mains. #2 to 300 kcmil wire range. 120/240 VAC, 10,000 AIR. Additional Information Actuator Type: Magnetic Thermal Current Rating: 200 A Dimensions: 3 in L x 2 in W x 6-1/4 in H Interrupt Rating: 10 kA Mounting Type: Plug Number of Phases: 1 Number of Poles: 2 Operating Frequency: 50/60 Hz Operating Temperature: 60 to 75 deg C Suitable for: Type ECB Unit Enclosures Type: Type BW Voltage Rating: 120/240 V Wire Size: 2/0 AWG
