Leviton Dimensions Partition Controller 5-Button 4-Wall LCNET NE515-C

UPC: 078477178195

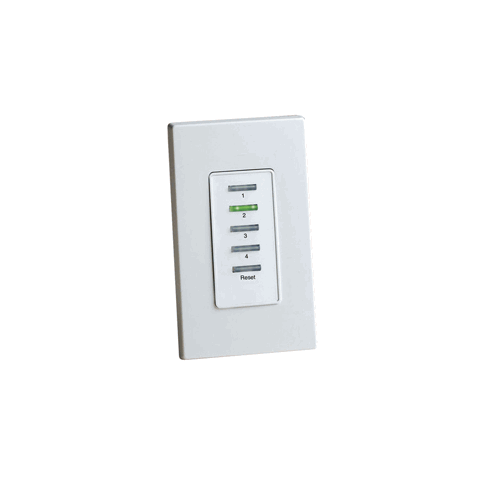

Leviton Dimensions Partition Controller 5-Button 4-Wall NE515-C

Leviton NE515-C partition controller for use in Leviton Dimension D3208 lighting control systems. Allows you to manipulate D3208 zone grouping in a room with up to four movable walls. Each button will place the D3208 Multizone Controllers into the user defined configuration when a wall is present or removed. After setup is completed, when a wall is removed to make an open space, pressing the button on the NE515 corresponding to that wall, will illuminate the button and signal to all D3208's on the LCnet to be in the user defined configuration that corresponds to that wall's removal. Pressing the button again will signal that the wall has been replaced and put all D3208's into the corresponding configuration. The Reset button will indicate all walls have been removed and puts the system back into the original configuration with proper configuration set-up. Features include: Allows for easy remote access to combine/separate function of the D3208 Each NE515 can handle a total of 4 walls for a total 16 different configurations Gangable with 1 additional unit for selection of up to 256 configurations. (See separate product instructions for details on programming) Buttons will illuminate when pressed representing a wall is removed Designer Decora styling enhances any d?cor See wiring diagram in additional photos for a typical installation (other components shown sold separately) Includes white faceplate and white wallplate; also includes an ivory faceplate (ivory wallplate not included)
