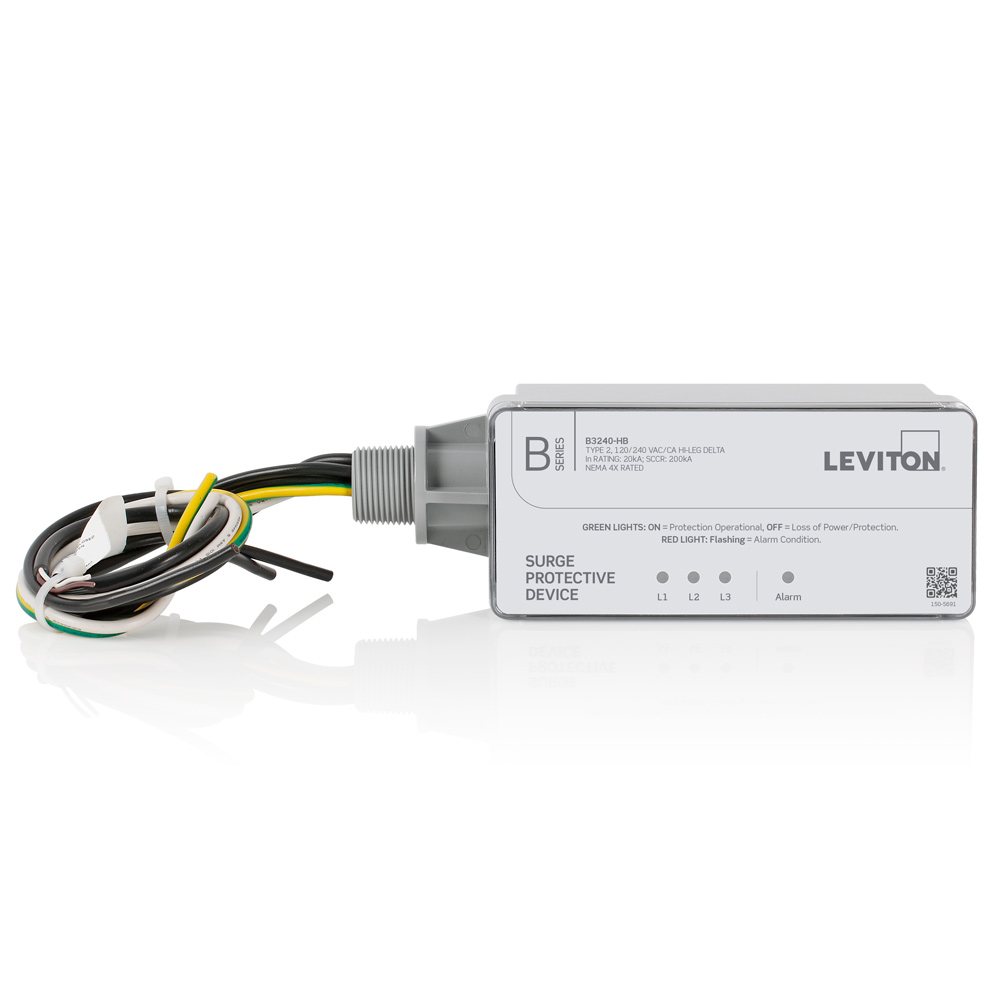

Type 2 Surge Protective Device, 120/240 VAC, Hi-Leg Delta

UPC: not available

Type 2 Surge Protective Device, 120/240 VAC, Hi-Leg Delta

Description B3240-HB Type 2 Surge Protective Device, 120/240 VAC, Hi-Leg Delta B Series Type 2 Surge Panel, 120/240 VAC, Hi-Leg Delta, Max Surge Current Rating of 65kA per Mode/130kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (l ) Rating, n NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 800, L-G: 700, N-G: 700, L-L: 1500, Maximum Continuous Operating Voltage (MCOV): 180/275V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 18″ UPC Code : 078477583104 Country Of Origin : Please Contact Customer Service _ _ _ Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment Ideal for the branch panel in COMMERCIAL AND INDUSTRIAL APPLICATIONS and the main panel in light commercial applications, the B Series is versatile in its usage Code Compliant – in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying to be provided with a surge dwelling units protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 . The 2023 code expanded the requirements or Type 2 SPD to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms Technical Information Electrical Specifications Connection Type : #12 AWG Frequency : 50/60Hz MCOV : 180V Recommended Circuit Breaker Rating : 20A Short Circuit Current Rating : 200kA Surge Technology : Thermally Protected MOVs Type : 2 Voltage Configuration : 240 /120 VAC/CA HIGH LEG DELTA Environmental Specifications Humidity Range : 0 to 95% Non-Condensing Storage Temperature : -49°F to 140°F (-45°C to 60°C) Enclosure Color : Gray Connector : 3/4″ NPT Side Mount Nipple Dimensions : 7.95″ x 3.06″ x 2.75″ Enclosure Material : Polycarbonate Mount : Surface NEMA Rating : NEMA 4X Performance Data Nominal Discharge Current Rating : 20kA Remote Monitoring : Form C Dry Contacts, 240V, 2A
